Product Overview
1mm Pitch 30 PIN Connector designed to replace JAE FI-X30HL, connecting to 2*15pin Dupont 2.0mm Pitch LVDS cable for LCD panel applications.
Product Specifications
| Cable Type |
32AWG, 30AWG, 28AWG, 26AWG; LCD 20cores/32cores with single shield, double shield, or non-shield options |
| Cable Color |
Black/Grey |
| Connectors |
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic |
| Cable Length |
50mm - 15000mm |
| Processing Methods |
Crimping, pressing, and soldering types |
| Pin Out Connection |
Customized according to customer specifications (provide LCD and main board datasheets) |
| Connector Pitch Range |
0.3mm - 4.2mm |
| ISO Certificate |
ISO9001:2008 |
Key Characteristics
Performance: Excellent signal transfer, clear picture quality, stable performance without shaking or transfer issues
Quality Assurance: 100% electrical and electricity performance testing
Compliance: ISO/RoHS certified
Applications
- Displays and LCD Panels
- PCs and Computers
- Flat Screen TVs
- Printers, Scanners, FAX Machines, Copiers
- Sound Systems
- Liquid Crystal Displays
- Car DVD Systems
- Digital Cameras
- Airbag Systems
- Inkjet Printers
- Medical Imaging Equipment
LVDS cables are used for signal transmission and internal layout in various fields including display systems, flat television sets, printers, scanners, computers, digital cameras, video cameras, fax machines, copiers, and Agilent test equipment.

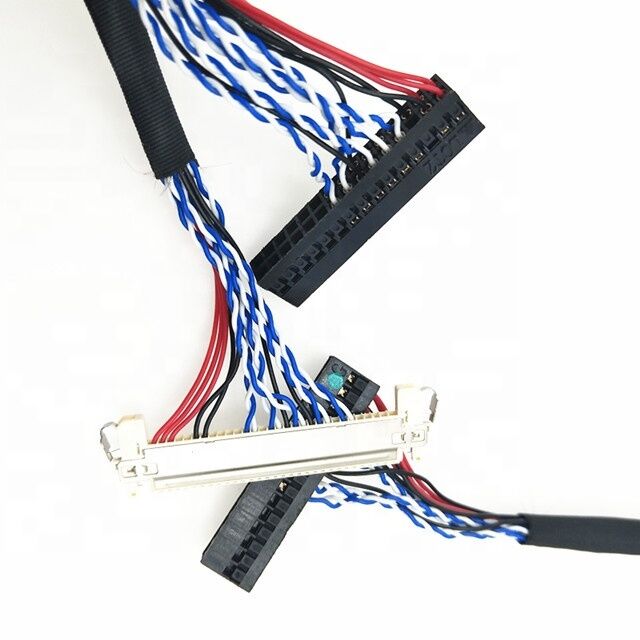

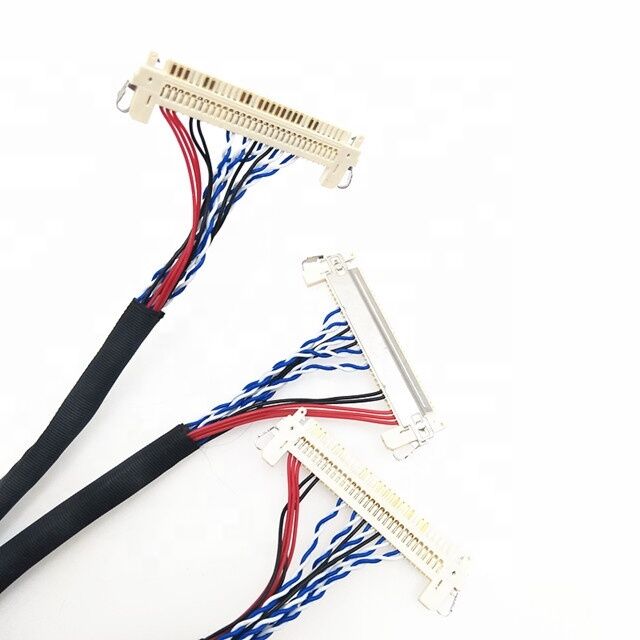

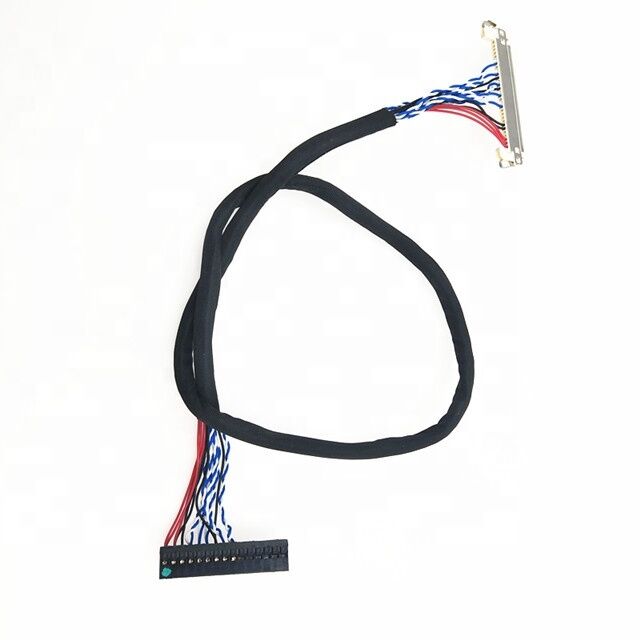

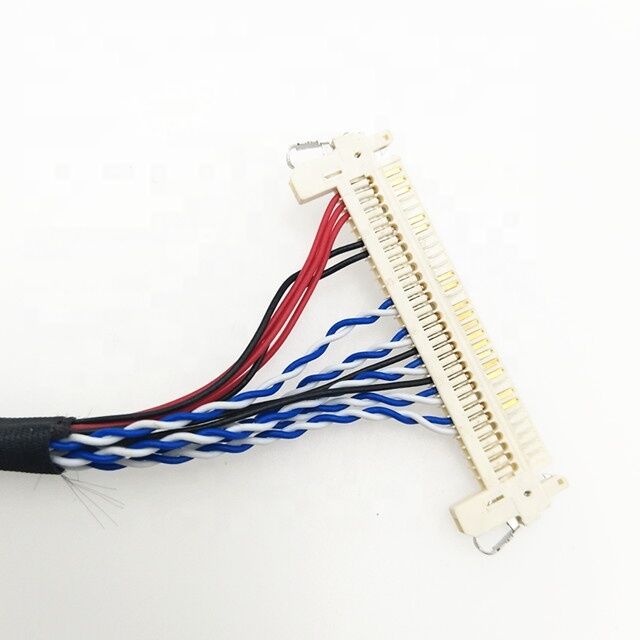

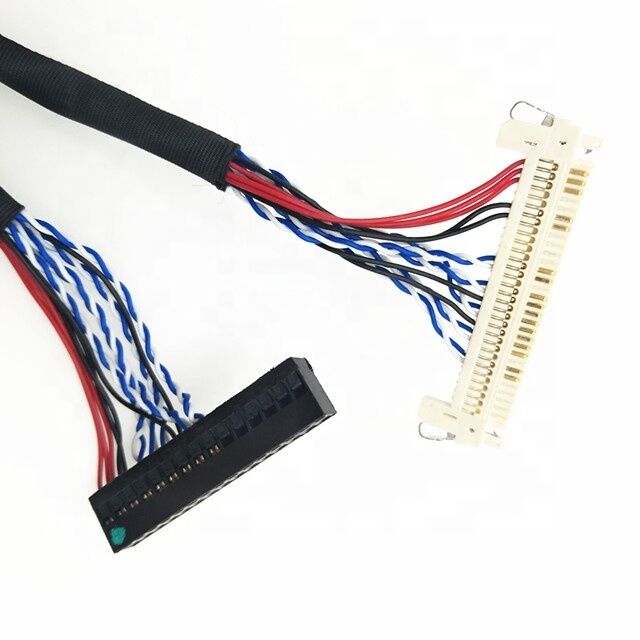

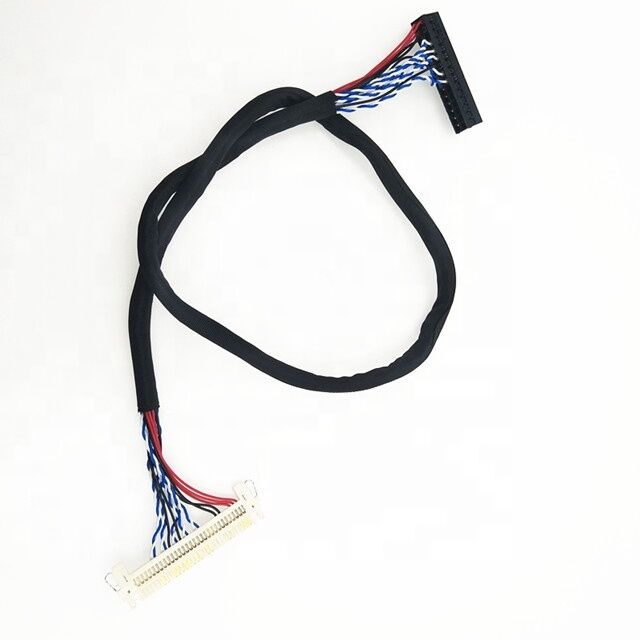

Product Images
Company Overview
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on customer needs.
Manufacturing Capabilities
Our facilities can produce various custom cable assemblies including LVDS cables, flat cables, RF cables, wire harnesses, as well as GPS/WIFI/ISM/GSM/3G/4G antennas and RF connectors.
Company Advantages
Quality Control: Most products have CE ROHS certification, ISO9001:2008
Low MOQ: 5pcs/10pcs/20pcs/50pcs depending on product type
Fast Delivery: 2-15 days, on-time delivery guaranteed
After-Sales Service: Technical support and return service available
Warranty: 1 Year Warranty included
Customization: OEM/ODM services available
Certifications & Quality
Packing & Delivery
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample orders are available for quality check and market testing (freight collect payment).
What's the delivery time?
Samples: 1-3 days production time. Bulk orders: 3-7 days production time.
What's your payment term?
We primarily accept T/T, with other payment methods available through negotiation.
What about quality problems?
We provide technical support and return services for any quality issues or questions.
